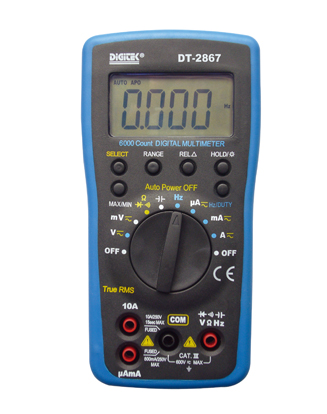

DT-2867

Feature:

·  Self-calibration

·  Display: 6000 counts

·  Auto/Manual range

·  Basic accuracy: 0.2%

·  Diode Check/Continuity Buzzer

·  Relative Measurement

·  AC True RMS

·  Max/Min Measurement

·  Data Hold

·  Auto Power Off, (Optional)

·  CE/LVD CAT Ⅲ 600V

Specification:

·  DC Voltage: 60/600mV/6/60V ±0.2%, 600V ±0.3%

·  AC Voltage: 60/600mV/6/60V ±1.0%, 600V ±1.5%

·  DC Current: 600/6000µA/60/600mA ±0.5%, 6A/10A ±0.8%

·  AC Current: 600/6000µA/60/600mA ±1.5%, 6A/10A ±2.0%

·  Resistance: 600Ω/6/60/600kΩ/6MΩ ±0.5%, 60MΩ ±1.0%

·  Capacitance: 100nF ~100mF ±5%

·  Frequency: 1Hz—10MHz ±0.1%

·  Duty Cycle: 0.1%--99.9% ±2.0%

·  Dimension:165(H)x83(W)x37(D) mm
