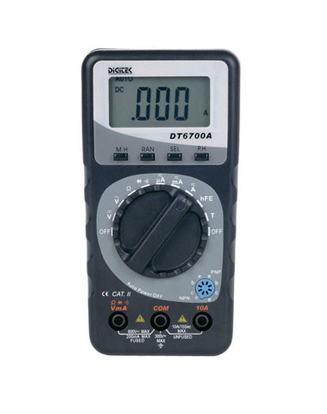

DT-6700A

Feature:

• Auto/ Manual Range
• Display: Max.2000 Counts
• Diode Check
• Continuity Buzzer
• hFE:0-1000
• Data Hold, Max Hold
• Auto Power Off

Specification:

• DC Voltage：   200mV/2/20/200±0.5%, 600V ±0.8%,
• AD Voltage：   2/20/200V ±0.8%, 200mV/600V ±1.2%
• DC Current： 200/2000μA ±2.0%, 20/200mA±1%, 2/10A ±2%
• AC Current：  200/2000μA ±2.5%, 20/200mA±1.5%, 2/10A ±2.5%
• Resistance：   200Ω/2/20/200kΩ/2MΩ ±1%, 20MΩ ±2%
• Temperature: 0 ℃ - +40 ℃ ±3 ℃, -50 ℃ - +200 ℃ ±0.75%+3 ℃                                 +200 ℃- +750 ℃ ±1.5%+3 ℃
