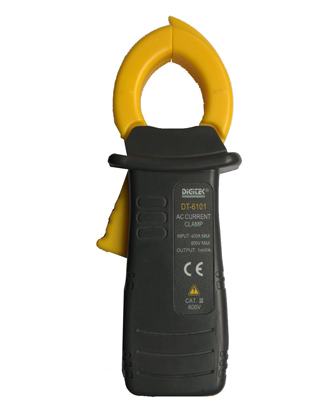

Accessories DT-6101 |
| |
DT-6101
Feature:
- AC Current Clamp Probe
- 1mV/1A: 1A to 400A rms AC for 400mV range of the multimeter.
- Special clamp design with hook to divide the needed wire from wiring harness
- Captured Conductor Size: 28mm maximum
- Dimensions: 171mm(H)×65mm(W)×38mm(D)
- CE/LVD CAT Ⅲ 600V
Specification:
- 1mV/1A: ±(2.5%+0.5A) 1A～400A (40Hz～400Hz)
- Load Resistance: 1kΩ typical
- Temperature Coefficient: 0.1×(specified accuracy) Per degree C. (0℃ to 18℃, 28℃ to 50℃)
|
| |
|
| |
|
