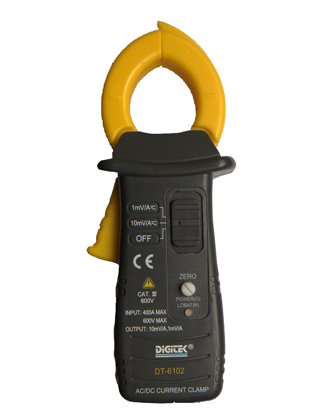

DT-6102
Feature:
- DC/AC Current Clamp Probe
- 0mV/1A: 100mA to 40A DC or rms AC for 400mV range of the multimeter.
- 1mV/1A: 1A to 400A DC or rms AC for 400mV range of the multimeter.
- Special clamp design with hook to divide the needed wire from wiring harness
- Captured Conductor Size: 28mm maximum
- Dimensions: 171mm(H)×65mm(W)×38mm(D)
- CE/LVD CAT Ⅲ 600V
Specification:
• DCA range: 10mV/1A
±(1.5%+50mA) 100mA～40A
1mV/1A
±(2.0%+0.5A) 1A～400A
• ACA range: 10mV/1A
±(2.0%+50mA) 100mA～40A (40Hz～400Hz)
1mV/1A
±(2.5%+0.5A) 1A～400A (40Hz～400Hz)
• Load Resistance: 10kΩ typical
• Temperature Coefficient: 0.1×(specified accuracy)
Per degree C. (0℃ to 18℃, 28℃ to 50℃) |
