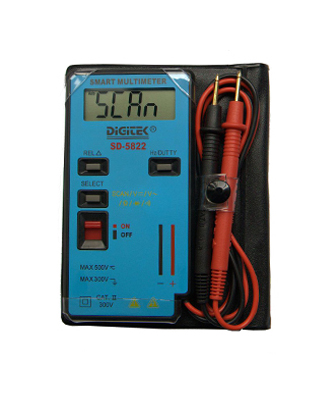

SD-5822
Feature:
- Display: 4000 counts
- Auto range
- Smart meter
- Basic accuracy: 0.5%
- Relative Measurement
- Input Impedance: 5MΩ
- Auto Power Off, Can Disable
- Dimensions: 111mm(H)×56mm(W)×10mm(D)
- CE/LVD CAT Ⅱ 300V
Specification:
Automatic Selection
- DC Voltage: 4/40/400V ±0.5%, 500V ±0.8%
- AC Voltage: 4/40/400V ±0.8%, 500V ±1.2%
- Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
Just one key selects the measurement function
- DC Voltage: 400mV/4/40/400V ±0.5%, 500V ±0.8%
- AC Voltage: 4/40/400V ±0.8%, 400mV/500V ±1.2%
- Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
- Frequency: 1Hz—500kHz ±0.1% (Press “Hz/DUTY” key to select on AC voltage range)
- Duty Cycle: 0.1%--99.9% ±2.0% (Press “Hz/DUTY” key to select on AC voltage range)
- Diode Check
- Continuity Buzzer
|
