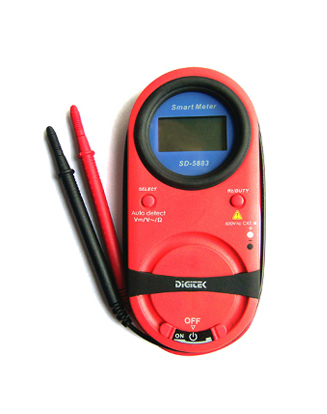

SD 5883
Feature
At SMART Mode
· Display: Max. 4000 Counts
· Auto Function Selecting: Ohm / DCV / ACV
· Input Impedance:5MΩ
· AutoRange
· Only One Operating Switch: Power Switch
· Pocket Type
· Auto Power Off
At 2 keys selecting Mode
· Add two function button- SELECT key and Hz/DUTY key
· Display: Max. 4000 Counts
· Function Selecting: DCV / ACV / Hz / DUTY / Ohm / Diode / Beeper
· Input Impedance:5MΩ
· AutoRange
· Auto Power Off
Specification
At SMART Mode
· DC Voltage: 4/40/400V±0.5%, 600V±0.8%
· AC Voltage: 4/40/400V±0.8%, 600V±1.2%
· Resistance Measurement: 400Ω/4/40/400kΩ/4MΩ±1%, 40MΩ±2%
At Just one key selecting Mode
· DC Voltage: 400mV/4/40/400V±0.5%, 600V±0.8%
· AC Voltage: 4/40/400V±0.8%, 400mV/600V±1.2%
· Resistance Measurement: 400Ω/4/40/400kΩ/4MΩ±1%, 40MΩ±2%
· Frequency: 1Hz to 100kHz±0.1%
· Duty Cycle: 0.1%-99.9%±2.5%
· Continuity Test
· Diode Test |
