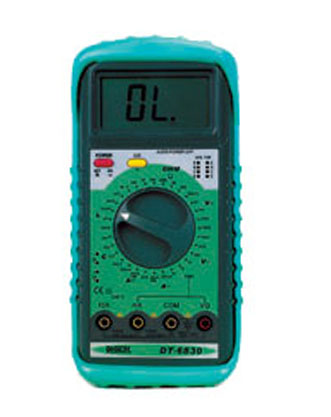

LCR DMM DT-6830 |
| |
DT-6830
Specification:
- 3 1/2 digits LCD display L/C/R test
- DC Voltage: 200mV/2/20/200V ±0.5%, 1000V ±0.8%
- AC Voltage: 2/20/200 ±1%, 700V ±1.5%
- DC Current: 2/20mA ±1%, 200mA ±1.5%, 10A ±2%
- AC Current: 2/20mA ±1.5%, 200mA ±2%, 10A ±2.5%
- Resistance: 2/20/200kΩ/2MΩ ±0.8%, 200Ω ±1%, 20MΩ ±2%
- Capacitance: 2/20nF/2μF ±2.5%, 200μF ±5%
- Inductance: 20/200mH/2/20H ±2.5%
- Frequency: 20MHz ±1%
- Temperature: -20 ℃ - 150 ℃ ±3 ℃, 150 ℃ - 800 ℃ ±3%
- Diode Check
- Continuity Buzzer
- Auto Power Off
- Dimension: 192(H)x91(W)x46(D) mm
|
| |
|
| |
|
