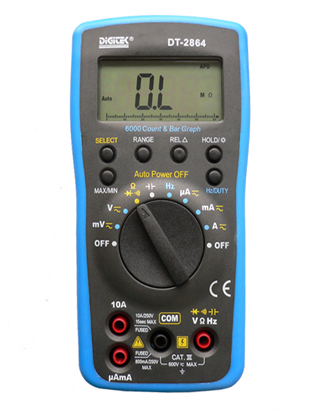

DT 2864

Feature:

• Display: 6000 counts, Analogue bar graph (61bar)
• Auto/Manual range
• Basic accuracy: 0.5%
• Diode Check/Continuity Buzzer
• Relative Measurement
• Max/Min Measurement
• Data Hold
• Auto Power Off, Can Disable
• CE/LVD CAT Ⅲ 600V  　

Specification:

• DC Voltage: 600mV/6/60/600.0V ±0.5%, 600V ±0.8%
•  AC Voltage: 6/60/600.0V ±1.0%, 600V ±1.5%
•  DC Current: 600/6000µA/60/600mA ±1.5%, 6A/10A ±2.0%
•  AC Current: 600/6000µA/60/600mA ±2.0%, 6A/10A ±2.5%
•  Resistance: 600Ω/6/60/600kΩ/6MΩ ±1.0%, 60MΩ ±2.0%
•  Capacitance: 40nF ±3%, 400nF/4µF ±2.5%, 40µF ±5%, 400/4000µF ±20%
•  Frequency: 1Hz—10MHz ±0.1%
•  Duty Cycle: 0.1%--99.9% ±2.0%
•  Dimension:165(H)x83(W)x37(D) mm
