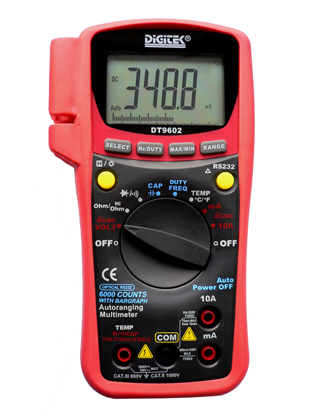

DT9602

Feature:

• Dual Display: 6000
• Counts with Bar graph 61 Segments
• Auto/Manual Range
• Diode Check
• Continuity Buzzer
• Flexible Auto Power Off
• Relative Measurement
• Data Hold Data
• Recording: MAX/MIN
• Backlight
• Optical RS232 Communication (Advanced Software Program for all windows)

Specification:

• DC Voltage: 600mV/6/60/600V±0.5%,1000V±0.8%
• AC Voltage: 6/60/600V±0.8%, 750V±1.2%
• DC Current: 60/600mA±1.5%, 6/10A±2%
• AC Current: 60/600mA±2%, 6/10A±2.5%,
• Resistance: 600Ω/6/60/600kΩ±1%, 6/60MΩ±2%, 600/6000 MΩ±5%
• Capacitance: 4nF±5%, 40/400nF/4/40μF±3%, 400μF±5%, 4000μF±20%
• Temperature: -50°C - +400°C±0.75%±3°C /-58°F - +752°F±0.75%±5°F
• Frequency: 1Hz -10MHz±0.1%
• Duty Cycle: 0.1%-99.9%±2.5%
• Dimension:177(H)x98(W)x39(D) mm
