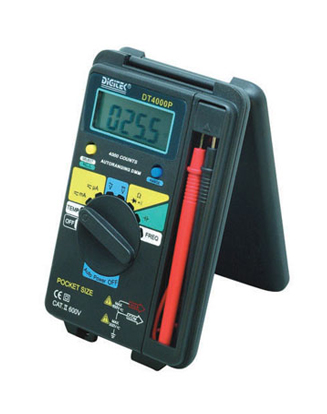

DT-4000P

Feature:

• Auto/Manual Range
• Pocket Size
• Display: Max. 4000 Counts
• Relative Measurement
• Diode Check
• Continuity Buzzer
• Auto Power Off , Can Disable

Specification:

• DC Voltage: 400mV/4/40/400V ±0.5%, 600V ±0.8%
• AC Voltage: 4/40/400V ±0.8%, 400mV/600V ±1.2%
• DC Current: 400/4000μA ±1.5%, 40/400mA ±1.2%
• AC Current: 400/4000μA ±2%, 40/400mA ±1.8%
• Resistance: 400Ω/4/40/400kΩ/4MΩ ±1%, 40MΩ ±2%
• Capacitance: 40nF ±5%, 400nF/4/40μF ±2.5%, 100μF ±3%
• Frequency: 10Hz-10MHz ±0.1%
• Duty Cycle: 0.1%-99.9% ±2.5%
• Temperature: 0 ℃ - +40 ℃ ±2 ℃, Room Temperature
• Dimension: 120(H)x80(W)x20(D) mm
