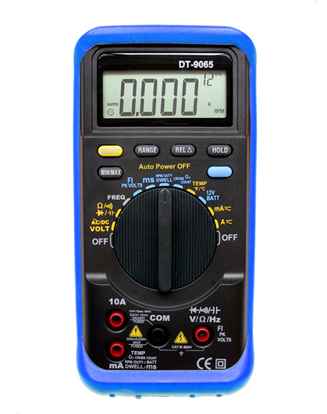

DT-9065

Feature:

• Dual Display: 4000 Counts
• Auto/Manual Range
• Diode Check
• Continuity Buzzer
• Battery Test
• Auto Power Off (Can Disable)
• Relative Measurement
• Data Hold
• Data Recording: MAX/MIN

Specification:

• DC Voltage: 400mV/4/40/400V±0.5%, 600V±0.8%
• AC Voltage: 4/40/400V±0.8%, 400mV/600V±1.2%
• DC Current: 40/400mA±1.5%, 4/10A±2%
• AC Current: 40/400mA±2%, 4/10A±2.5%
• Resistance: 400Ω/4/40/400kΩ±1%, 4/40MΩ±2%
• Capacitance: 40nF/400nF/4μF /40μF±3%, 400μF /4000μF±20%
• Frequency: 1Hz -10MHz±0.1%
• Duty Cycle: 0.1%-99.9%±2%
• FI PEAK Voltages: 4/40/400V±5%
• O2 CROSS COUNT: 0 – 500Hz (per second)±0.5%
• RPM: 0 – 10000 RPM±0.5%
• Dwell Angle: 1 – 12 CYL±2%
• Pulse Width-ms (Negative):1~999ms±2%
• Temperature: -50°C - +400°C±0.75%±3°C /-58°F - +752°F±0.75%±5°F
