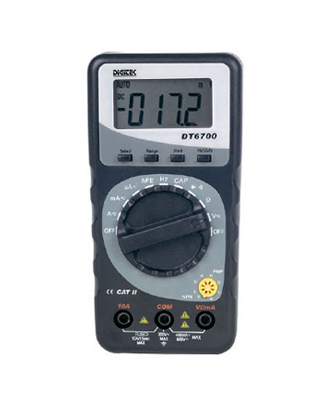

DT-6700

Feature:

• Auto / Manual Range
• Display: Max. 4000 Counts
• Diode Check
• Continuity Buzzer
• hFE: 0- 1000
• Data Hold
• Auto Power Off

Specification: 　

• DC Voltage: 400mV/4/40/400/600V ±0.5%
• AC Voltage: 400mV ±1.8%, 4/40/400V ±1%, 600V ±1.5%
• DC Current: 400/4000μA/40/400mA ±1.8%, 10A ±2.0%
• AC Current: 400/4000μA/40/400mA ±2.3%, 10A ±2.5%
• Resistance: 400Ω/4/40/400KΩ/4MΩ ±1%, 40MΩ ±1.5%
• Capacitance: 4nF/200μF ±5%, 40/400nF/4/40μF ±1.5%
• Frequency: 10Hz - 10MHz ±0.2%
• Dimension:140(H)x72(W)x37(D)mm
