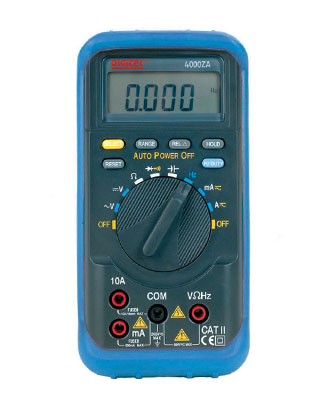

DT-4000ZA

Feature:

• Display: 4000 Counts
• Auto/Manual Range
• Basic Accuracy: 0.5%
• Diode Check
• Continuity Buzzer
• Data Hold
• Relative Measurement
• Auto Power Off , Can Disable

Specification: 　

• DC Voltage: 400mV/4/40/400V ±0.5%, 600V ±0.8%
• AC Voltage: 4/40/400V ±0.8%, 400mV/600V ±1.2%
• DC Current: 40/400mA ±1.5%, 10A ±2%
• AC Current: 40/400mA ± 2%, 10A ±2.5 %
• Resistance: 400Ω/4/40/400kW/4MΩ ±1%,40MΩ ±2%
• Capacitance: 4nF ±5%,40nF ±2.5%, 400nF/4/40μF ±3.5%, 200μF ±4%
• Frequency: 10Hz-10MHz ±0.02%
• Duty Cycle: 0.1%-99.9% ±2%
• Dimension: 155(H)x75(W)x33(D)mm
