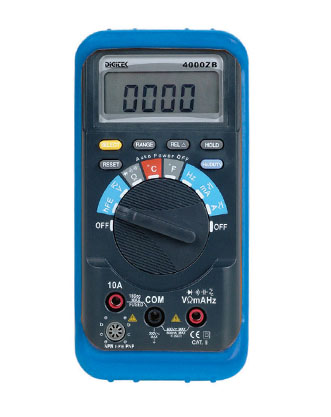

DT-4000ZB

Feature:

• Display: 4000 Counts Auto/Manual Range
• Diode Check
• Continuity Buzzer
• hFE Test
• Relative Measurement
• Data Hold
• Auto Power Off , Can Disable

Specification: 　

• DC Voltage: 400mV/4/40/400V ±0.5%, 600V ±0.8%
• AC Voltage: 4/40/400V ±0.8%, 400mV/600V ±1.2%
• DC Current: 40/400mA ±1.5%, 10A ±2%
• AC Current: 40/400mA ±2%, 10A ±2.5 %
• Resistance: 400Ω/4/40/400kΩ/4MΩ ±1%, 40MΩ ±2%
• Capacitance: 4nF ±5%,40nF ±3%, 400nF/4/40μF ±2%,200μF ±4%
• Frequency: 10Hz-10MHz ±0.02%
• Duty Cycle: 0.1%-99.9% ±2%
• Temperature: 0 ℃ -- +40 ℃ (32 ℉ -- +104 ℉) ±3 ℃                               -50 ℃ - +200 ℃ (-58 ℉--+ 392 ℉) ±0.75% ±3 ℃                                                          +200 ℃ - +750 ℃ ( 392 ℉-- +1382 ℉) ±1.5% ±3 ℃
• Dimension:155(H)x75(W)x33(D) mm DT-4000ZC
