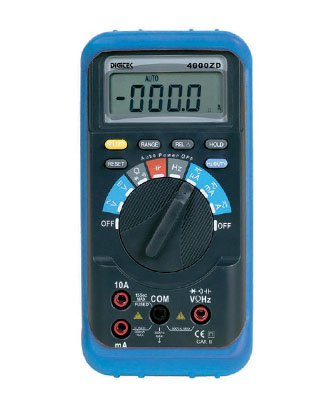

Auto Range DT-4000ZD |
| |
DT-4000ZD
Feature:
- Display: Max. 4000 Counts Auto/Manual Range
- Diode Check
- Continuity Buzzer
- Relative Measurement
- Data Hold
- Auto Power Off , Can Disable
Specification:
- DC Voltage: 400mV/4/40V ±0.5%, 400/600V ±1%
- AC Voltage: 4/40/400V ±1%, 400mV/600V ±1.5%
- DC Current: 400/4000μA/40/400mA ±1.5%, 4/10A ±2%
- AC Current: 400/4000μA/40/400mA ±2%, 4/10A ±2.5 %
- Resistance: 400Ω/4/40/400kΩ ±1%, 4/40MΩ ±2%
- Capacitance: 40nF ±3.5%, 400nF/4/40μF ±2.5%,100μF ±3%
- Frequency: 10Hz-10MHz ±0.02%
- Duty Cycle: 0.1% - 99.9% ±2.5%
- Dimension: 155(H)x75(W)x33(D) mm
|
| |
|
| |
|
