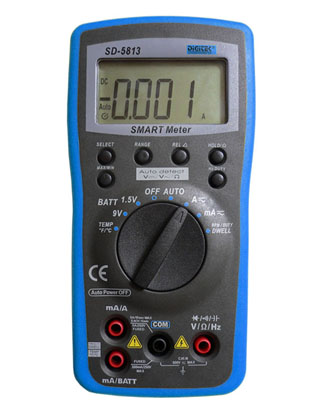

SD-5813

Feature:

• Display: 4000 counts
• Auto/Manual range
• Smart meter
• Basic accuracy: 0.5%
• Relative Measurement
• Max/Min Measurement
• Data Hold
• Auto Power Off, Can Disable
• CE/LVD CAT Ⅲ 500V

Specification:

Automatic Selection

•  DC Voltage: -400mV/±4/40/400V ±0.5%, ±500V ±0.8%
•  AC Voltage: 4/40/400V ±0.8%, 500V ±1.2%
•  Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%

Add-keys select the measurement function

•  DC Voltage: ±400mV/±4/40/400V ±0.5%, ±500V ±0.8%
•  AC Voltage: 4/40/400V ±0.8%, 400mV/500V ±1.2%
•  Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
•  Capacitance: 40nF ±3%, 400nF/4µF ±2.5%, 40µF ±5%,
                         400/4000µF ±20%
•  Frequency: 1Hz—500kHz ±0.1%
•  Duty Cycle: 0.1%--99.9% ±2.0%
•  Diode Check
•  Continuity Buzzer

Selected by selector switch

•  DC Current: 40/400mA ±1.2% 4/10A ±2.0%
•  AC Current: 40/400mA ±2.0% 4/10A ±2.5%
•  Battery Check: 1.5V/9V (0～200.0%) ±2.0%
•  Temperature: -50℃--150℃ (-58℉--302℉) ±(3℃+1) ±(5℉+2)
                         150℃--700℃ (302℉--1292℉) ±(3%+1℃）±(3%+2℉)
•  Engin (1～12cyl):                                                                                                                                                            RPM (0～10,000 RPM) ±0.1%                                                                                                                               DUTY cycle (0.1～99.9%) ±2.0%                                                                                                             DWELL angle ±2.0%
