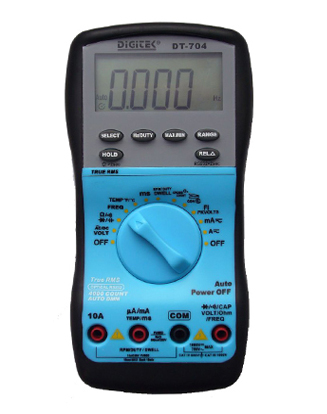

DT704

Feature:

•  Display: 4000 counts
•  Auto/Manual range
•  Digital multimeter & Automotive engine analyzer
•  Diode Check
•  Continuity Buzzer
•  Relative Measurement
•  True RMS AC+DC
•  Max/Min Measurement
•  Data Hold
•  Backlight
•  Auto Power Off, Can Disable
•  Backlight
•  Optical RS232 Communication
•  (Advanced Software Program for all Windows)
•  CE/LVD CAT Ⅲ 1000V 　

Specification:

•  DC Voltage: 40mV/400mV/4/40/400V ±0.5%, 1000V ±0.8%
•  AC Voltage: 4/40/400V ±1.5%, 400mV/750V ±2.0%
•  DC Current: 40/400mA ±1.5%, 4A/10A ±2.0%
•  AC Current: 40/400mA ±2.0%, 4A/10A ±2.5%
•  Resistance: 400Ω/4/40/400kΩ ±1.0%, 4/40MΩ ±2.0%
•  Capacitance: 40nF/400nF/40µF ±3.0%,  400/4000µF ±20%
•  FI PEAK Voltages: 400V ±5.0%
•  Dwell Angle: ±2.0%
•  Frequency: 1Hz—10MHz ±0.1%
•  O2CROSS COUNT: 0-500Hz (Pper second) ±0.5%
•  RPM: 0-10000RPM ±0.5%
•  DIS(2)/CON(4) RPM: 0-10000RPM ±0.5%
•  Duty Cycle: 0.1%-99.9% ±2.0%,
•  Pulse Width-ms (Negative):  1-999ms ±5.0%,
•  Temperature: -50℃--200℃ (-58℉--392℉) ±75% ±3℃ (±0.75% ±5℉)                    200℃--400℃ (392℉--752℉) ±1.5%, ±3℃, ( ±1.5%, ±5℉)
•  Dimension:185(H)x92(W)x52(D) mm
