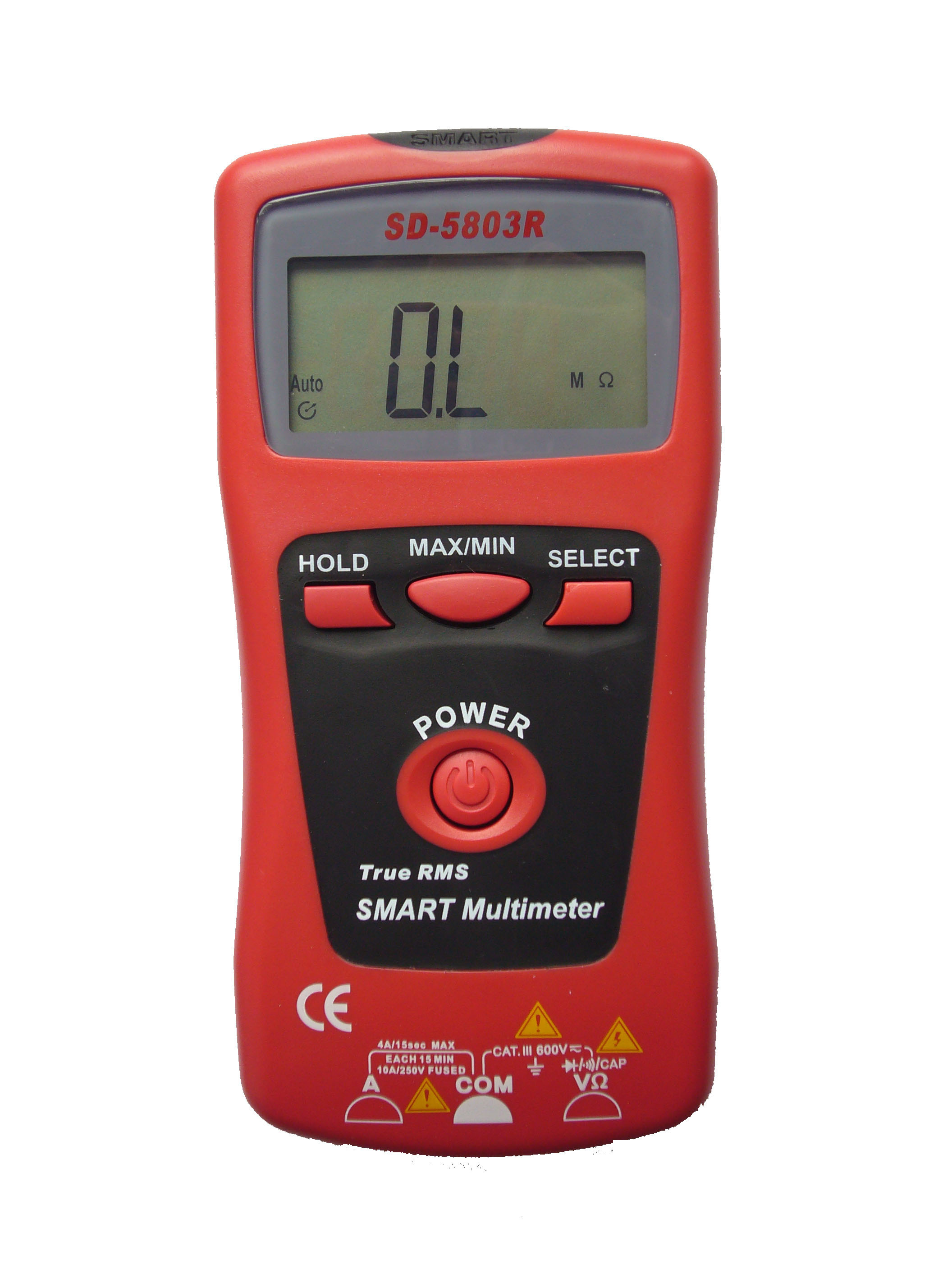

SD-5803R

Feature

At SMART Mode

•      Display: Max. 4000 Counts
•      Auto Function Selecting: Ohm / DCV / ACV/ DCA/ ACA
•      Input Impedance:10MΩ
•      Auto Range
•      Three additional function keys
•      AC True RMS
•      Auto Power Off

At 3 keys selecting Mode

•      Three additional function keys such as HOLD, MAX/MIN, SELECT
•      Display: Max. 4000 Counts
•      Function Selecting: DCV / ACV / Ohm / Diode / Beeper / Capacitance / DCA / ACA
•      CE/LVD CAT III 600V

Specification

At SMART Mode

•      DC Voltage: 4/40/400V±0.5%, 600V±0.8%
•      AC Voltage: 4/40/400V±1.5%, 600V±2.0%
•      DCA:  400mA/4A ±2.0%
•      ACA:  400mA/4A ±2.5%
•      Resistance Measurement: 400Ω/4/40/400kΩ/4MΩ±1%, 40MΩ±2%

At Just one key selecting Mode

•      DC Voltage: 4/40/400V ±0.5%, 600V ±0.8%
•      AC Voltage: 4/40/400V/600V±1%, 400mA±2.0%
•      Resistance Measurement: 400Ω/4/40/400kΩ/4MΩ ±1%, 40MΩ ±2%
•      Capacitance Measurement: 40nF/400nF/4μF /40μF ±3%, 400μF /4000μF±20%
•      DCA:  400mA/4A ±2.0%
•      ACA:  400mA/4A ±2.0%
•      Continuity Test
•      Diode Test
•      Dimension : 152x78x33 mm
