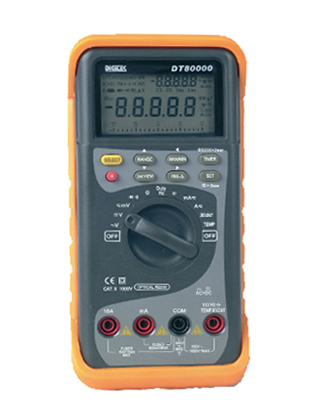

DT80000

Feature:

• Multi-display: Primary 80000, Second 80000 and Bargraph 21
• Auto Hold/Peak Hold
• Relative Measurement
• Dynamic Recording: MAX/MIN/AVG/MAX-MIN
• Pulse Width Measurement
• Communication: Isolation Optical RS232
• Back Light Display
• Timer
• Auto Power Off
• Diode Check Continuity Buzzer True
• True RMS:DT-80000R

Specification: 　

• DC Voltage: 80/800mV/8/80V ±0.05%,800/1000V ±0.08%
• AC Voltage: 80/800mV/8V ±0.5%, 80/750V ±1%
• DC Current: 80/800mA/8/10A ±0.5%
• AC Current: 80/800mA/8/10A ±0.8%
• Resistance: 800Ω/8/80/800kΩ/8MΩ ±0.3%,80MΩ ±2.5%
• Capacitance: 1nF ±5%, 10/100nF/1/10μF ±2.5%, 100μF ±3.5%
• Frequency: 100Hz - 10MHz ±0.05% ( Plus Adapter up to 1000MHz)
• Duty Cycle: 0.1% - 99.9% Temperature: -50 oC - +1372 oC ±2.5%
• 18 Frequency Points, 1% - 99% Duty Selectable Square Wave Output
•  dBm 20 Types of Reference Impedance
• Dimension:190(H)x90(W)x40(D) mm
