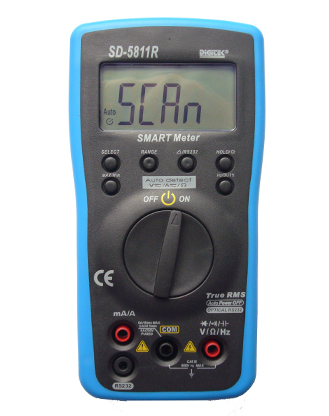

SD-5811R

Feature:

• Display: 4000 counts
• Auto Function Selecting: Ohm/DCV/ACV/DCA/ACA
• Auto/Manual Range
• Relative Measurement
• Data Hold
• AC True RMS
• Optical RS232
• Auto Power Off, Can Disable
• CE/LVD CAT III 600V

Specification:

Automatic Selection

• DC Voltage:-400mV/±4/40/400V ±0.5%, 600V ±0.8%
• AC Voltage: 4/40/400V/600V ±1%, 400mV ±2%
• DC Current: 400mA/4A ±2.0%
• AC Current: 400mA/4A ±2.0%
• Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%

 Add-keys celect the measurement function

• DC Voltage: ±400mV/±4/40/400V ±0.5%, 600V ±0.8%
• AC Voltage: 4/40/400V ±1.5%, 600V ±2.0%
• Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
• Capacitance: 40nF/400nF/4μF ±3.0%, 40μF ±5%, 400/4000μF ±20%
• Frequency: 1Hz - 500KHz ±0.1%
• Duty Cycle: 0.1% - 99.9% ±2.0%
• Diode Check
• Continuity Buzzer
• Dimension:165(H)x83(W)x37(D) mm
