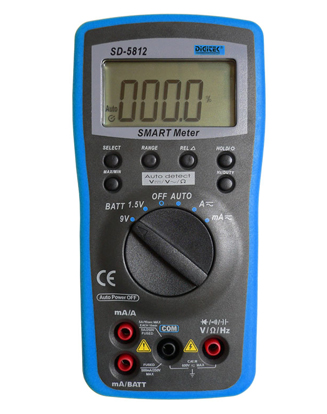

SD-5812

 Feature:

•  Display: 4000 counts
•  Auto/Manual range
•  Smart meter
•  Basic accuracy: 0.5%
•  Relative Measurement
•  Max/Min Measurement
•  Data Hold
•  Auto Power Off, Can Disable
•  CE/LVD CAT Ⅲ 600V

Specification

Automatic Selection

•  DC Voltage: -400mV/4/40/400V ±0.5%, ±600V ±0.8%
•  AC Voltage: 4/40/400V ±0.8%, 600V ±1.2%
•  Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%

Add-keys select the measurement function

•  DC Voltage: ±400mV/4/40/400V ±0.5%, ±600V ±0.8%
•  AC Voltage: 4/40/400V ±0.8%, 400mV/600V ±1.2%
•  Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
•  Capacitance: 40nF ±3%, 400nF/4µF ±2.5%, 40µF ±5%, 400/4000µF ±20%
•  Frequency: 1Hz—500kHz ±0.1%
•  Duty Cycle: 0.1%--99.9% ±2.0%
•  Diode Check
•  Continuity Buzzer

Selected by selector switch

•  DC Current: 40/400mA ±1.2%  4/10A ±2.0%
•  AC Current: 40/400mA ±2.0%  4/10A ±2.5%
•  Battery Check: 1.5V/9V (0～200.0%) ±2.0%
