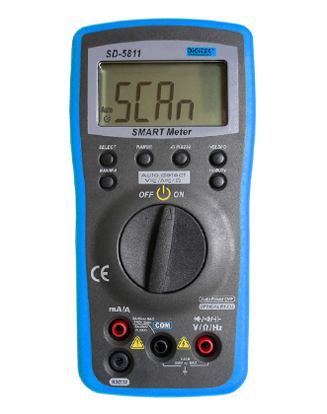

SD 5811

Feature:

• Display: 4000 counts
• Auto/Manual range
• Smart meter
• Basic accuracy: 0.5%
• Relative Measurement
• Max/Min Measurement
• Data Hold
• Optical RS232
• Auto Power Off, Can Disable
• CE/LVD CAT III 600V

Specification:

Automatic Selection

• DC Voltage: -400mV/±4/40/400V ±0.5%, ±600V ±0.8%
• AC Voltage: 4/40/400V ±0.8%, 600V ±1.2%
• DC Current: 400mA/4A ±2.0%
• AC Current: 400mA/4A ±2.5%
• Resistance: 400Ω/4/40/400kΩ/4MΩ ±0.3%, 40MΩ ±2.5%

Add-keys celect the measurement function

• DC Voltage: ±400mV/±4/40/400V ±0.5%, ±600V ±0.8%
• AC Voltage: 4/40/400V ±0.8%, 400mV/600V ±1.2%
• Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
• Capacitance: 40nF ±3%, 400nF/4μF ±2.5%, 40μF ±5%, 400/4000μF ±20%
• Frequency: 1Hz - 500KHz ±0.1%
• Duty Cycle: 0.1% - 99.9% ±2.0%
• Diode Check
• Continuity Buzzer 　
• Dimension:165(H)x83(W)x37(D) mm
