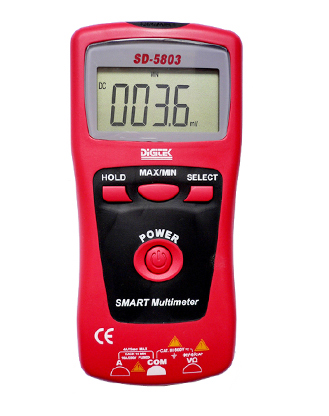

SD-5803

 Feature:

At SMART Mode

• Display: Max. 4000 Counts
• Auto Function Selecting: Ohm / DCV / ACV/ DCA/ ACA
• Input Impedance:10MΩ
• Auto Range
• Only One Operating Switch: Power Switch
• Auto Power Off

At Just one key selecting Mode

• Display: Max. 4000 Counts
• Auto Function Selecting: DCV / ACV / Ohm / Diode / Beeper / Capacitance / DCA / ACA
• Input Impedance:10MΩ
• Auto Range
• Operating Switch : One Power Switch plus three additional function switch such as HOLD, MAX/MIN,SELECT
• (Due to only 3 keys assembled, usually SELECT, MAX/MIN and HOLD are chosen to be set. Not all the pressing keys are on the DMM. If necessary, you can combining three function switch from such keys as MAX/MIN , Hz/DUTY, RELΔ , RANGE, HOLD and SELECT)
• Auto Power Off
• Continuity Test
• Diode Test

Specification:

At SMART Mode

• DC Voltage: 4/40/400V±0.5%, 600V±0.8%
• AC Voltage: 4/40/400V±0.8%, 600V±1.2%
•  DCA:          400mA/4A±2%
• ACA:           400mA/4A±2.5%
• Resistance Measurement: 400Ω/4/40/400kΩ/4MΩ±1%, 40MΩ±2%

At Just one key selecting Mode

• DC Voltage: 400mV/4/40/400V±0.5%, 600V±0.8%
• AC Voltage: 4/40/400V±0.8%, 400mV/600V±1.2%
• Resistance Measurement: 400Ω/4/40/400kΩ/4MΩ±1%, 40MΩ±2%
•  DCA:          400mA/4A±2%
• ACA:           400mA/4A±2.5%
• Capacitance Measurement: 40nF/400nF/4μF /40μF±3%, 400μF /4000μF±20%
• Frequency: 1Hz to 500kHz±0.1%
• Duty Cycle: 0.1%-99.9%±2.5%
