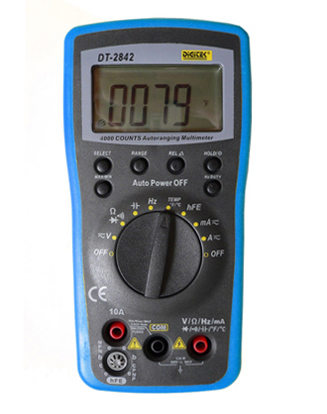

DT-2842
Feature:
· Display: 4000 counts
· Auto/Manual range
· Basic accuracy: 0.5%
· Diode Check/Continuity Buzzer
· Transistor hFE Check
· Relative Measurement
· Max/Min Measurement
· Data Hold
· Auto Power Off, Can Disable
· CE/LVD CAT Ⅲ 600V
Specification:
· DC Voltage: 400mV/4/40/400V ±0.5%, 600V ±0.8%
· AC Voltage: 4/40/400V ±1.0%, 400mV/600V ±1.5%
· DC Current: 40/400mA ±1.5%, 4A/10A ±2.0%
· AC Current: 40/400mA ±2.0%, 4A/10A ±2.5%
· Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
· Capacitance: 40nF ±3%, 400nF/4µF ±2.5%, 40µF ±5%, 400/4000µF ±20%
· Frequency: 1Hz—10MHz ±0.1%
· Duty Cycle: 0.1%--99.9% ±2.0%
· Temperature: -50℃--150℃ (-58℉--302℉) ±(3℃+1) ±(5℉+2) 150℃--700℃ (302℉--1292℉) ±(3%+1℃) ±(3%+2℉) |
