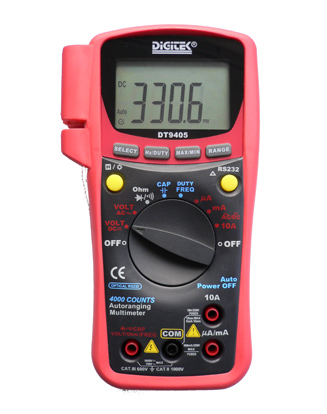

DT9405

Feature:

• Display: Max. 4000 Counts
• Auto/Manual Range
• Diode Check
• Continuity Buzzer
• Flexible Auto Power Off
• Relative Measurement
• Data Hold
• Backlight
• Optical RS232 Communication (Advanced Software Program for all windows)

Specification:

• DC Voltage: 400mV/4/40/400V±0.5%, 1000V±0.8%
• AC Voltage: 4/40/400V±0.8%, 400mV/750V±1.2%
• DC Current: 400 /4000μA±2%, 40/400mA±1.5%, 4/10A±2%
• AC Current: 400 /4000μA±2.5%, 40/400mA±2%, 4/10A±2.5%
• Resistance: 400Ω/4/40/400kΩ±1%, 4/40MΩ±2%
• Capacitance: 40nF/400nF/4μF/40μF±3%, 400μF/4000μF±20%
• Frequency: 1Hz -10MHz±0.1%
• Duty Cycle: 0.1%-99.9%±2.5%
• Dimension:177(H)x98(W)x39(D) mm
