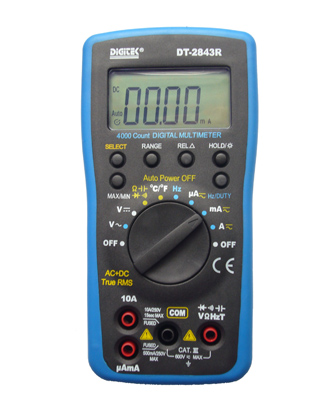

TRMS DMM DT-2843R |
| |
DT-2843R
Feature:
- Display: 4000 counts
- Auto/Manual range
- Basic accuracy: 0.5%
- Diode Check/Continuity Buzzer
- Relative Measurement
- True RMS AC+DC
- Max/Min Measurement
- Data Hold
- Auto Power Off, Can Disable
- CE/LVD CAT Ⅲ 600V
Specification:
- DC Voltage: 400mV/4/40/400V ±0.5%, 600V ±0.8%
- AC Voltage: 4/40/400V ±1.5%, 400mV/600V ±2.0%
- DC Current: 400/4000µA/40/400mA ±1.5%, 4A/10A ±2.0%
- AC Current: 400/4000µA/40/400mA ±2.0%, 4A/10A ±2.5%
- Resistance: 400Ω/4/40/400kΩ/4MΩ ±1.0%, 40MΩ ±2.0%
- Capacitance: 40nF ±3%, 400nF/4µF ±2.5%, 40µF ±5%, 400/4000µF ±20%
- Frequency: 1Hz—10MHz ±0.1%
- Duty Cycle: 0.1%--99.9% ±2.0%
- Temperature: -50℃--150℃ (-58℉--302℉) ±(3℃+1) ±(5℉+2) 150℃--700℃ (302℉--1292℉) ±(3%+1℃) ±(3%+2℉)
- Dimension:165(H)x83(W)x37(D) mm
|
| |
|
| |
|
