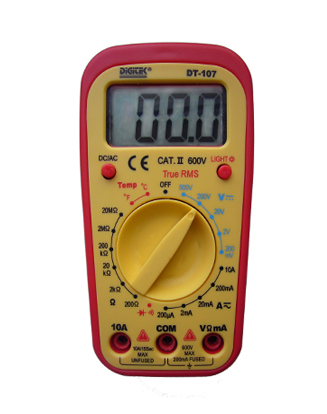

Manual-Range DMM DT-107 |
| |
DT-107
Feature:
- Display: 2000 counts
- Manual range
- Diode Check
- Continuity Buzzer
- AC True RMS
- Input Impedance: 10MΩ
- Backlight
- CE/LVD CAT II 600V
Specification:
- DC Voltage: 200mV/2/20/200V ±0.5%, 500V ±0.8%
- AC Voltage: 200mV/2/20/200V ±2.0%, 500V ±2.5%
- DC Current: 200µA /2//20mA/200mA ±1.5%, 10A ±2%
- AC Current: 200µA /2//20mA/200mA ±2.0%, 10A ±2.5%
- Resistance: 200Ω/2/20/200kΩ/ 2MΩ±1%, 20MΩ ±2%
- Temperature: -50℃--200℃(0.58℉--392℉) ±0.75% ±3℃(±0.75%±5℉) 200℃--750℃(392℉--1382℉) ±1.5% ±3℃ (±1.5%±5℉)
- Dimension:136(H)x73(W)x39(D) mm
|
| |
|
| |
|
