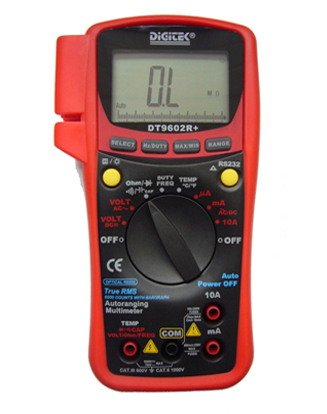

TRMS DMM DT-9602R+ |
| |
DT-9602R+
Feature:
- Dual Display: 6000 counts with Bar graph 62 Segments
- Auto/Manual range
- Diode Check
- Continuity Buzzer
- Relative Measurement
- True RMS AC+DC
- Date Recording: Max/Min/MAX-MIN
- Data Hold
- Backlight
- Optical RS232 Communication
- (Advanced Software Program for all Windows)
- Flexible Auto Power Off
- CE/LVD CAT Ⅲ 600V
Specification:
- DC Voltage: 600mV/6/60/600V ±0.5%, 1000V ±0.8%
- AC Voltage: 6/60/600V /750V ±1.0%
- DC Current: 600/6000µA ±1.5%, 60/600mA ±1.5%, 6A/10A ±2.0%
- AC Current: 600/6000µA ±2.0%, 60/600mA ±2.0%, 6A/10A ±2.5%
- Resistance: 600Ω/6/60/600kΩ ±1.0%,6MΩ/60MΩ ±2.0%
- Capacitance: 40nF ±5.0%, 400nF/4µF/40µF ±3.0%, 400/4000µF ±20.0%
- Frequency: 1Hz—10MHz ±0.1%
- Duty Cycle: 0.1%--99.9% ±2.0%
- Dimension:177(H)x98(W)x39(D) mm
|
| |
|
| |
|
