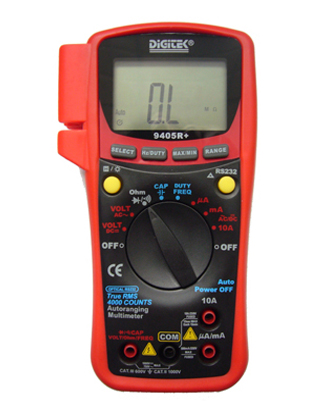

TRMS DMM DT-9405R+ |
| |
DT-9405R+
Feature:
- Display: 4000 counts
- Auto/Manual range
- Diode Check
- Continuity Buzzer
- Relative Measurement
- True RMS AC+DC
- Data Recoding : Max/Min
- Data Hold
- Backlight
- Auto Power Off, Can Disable
- Optical RS232 Communication (Advanced Software Program for all Windows)
- CE/LVD CAT Ⅲ 600V
Specification:
- DC Voltage: 400mV/4/40/400V±0.5%, 600V±0.8%
- AC Voltage: 400mV/4/40/400V/600V±1.0%
- DC Current: 400/4000μA±1.5%, 40/400mA±1.5%, 4/10A±2%
- AC Current: 400/4000μA±2.0%, 40/400mA±2.0%, 4/10A±2.5%
- Resistance: 400Ω±1.5%，4/40/400kΩ±1%, 4/40MΩ±2%
- Capacitance: 40nF±3.5%, 400nF/4/40μF±3%, 400μF/4000μF ±20.0%
- Frequency: 1Hz -10MHz±0.1%
- Duty Cycle: 0.1%-99.9%±2.5%
- Dimension:177(H)x98(W)x39(D) mm
|
| |
|
| |
|
