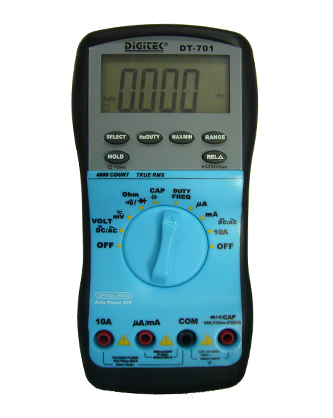

TRMS DMM DT-701 |
| |
DT-701:
Feature:
- Display: 4000 counts
- Auto/Manual range
- Diode Check
- Continuity Buzzer
- Relative Measurement
- True RMS AC+DC
- Max/Min Measurement
- Data Hold
- Auto Power Off, Can Disable
- Backlight
- Optical RS232 Communication
-
- (Advanced Software Program for all Windows)
- CE/LVD CAT Ⅲ 1000V
Specification:
- DC Voltage: 40Mv/400mV±0.8%, 4/40/400V±0.5%, 1000V ±0.8%
- AC Voltage: 40mV/400mV±1.0%, 4/40/400V/750V ±1.0%
- DC Current: 400/4000µA ±1.5% , 40/400mA ±1.5%, 4A/10A ±2.0%
- AC Current: 400/4000µA ±2.0%, 40/400mA ±2.0%, 4A/10A ±2.5%
- Resistance: 400Ω/4/40/400kΩ/4MΩ±1.0%, 40MΩ ±2.0%
- Capacitance: 40nF/400nF/4µF /40µF ±3.0%, 400/4000µF ±20%
- Frequency: 1Hz—10MHz ±0.1%
- Duty Cycle: 0.1%--99.9% ±2.5%
- Dimension:185(H)x91(W)x51(D) mm
|
| |
|
| |
|
